  1. Alle produkter
  2. BB&S Controller, incl. Powercon True1 to male cable 2 m.

BB&S Controller, incl. Powercon True1 to male cable 2 m.

https://brothers-sons.odoo.com/web/image/product.template/16805/image_1920?unique=4b40f23

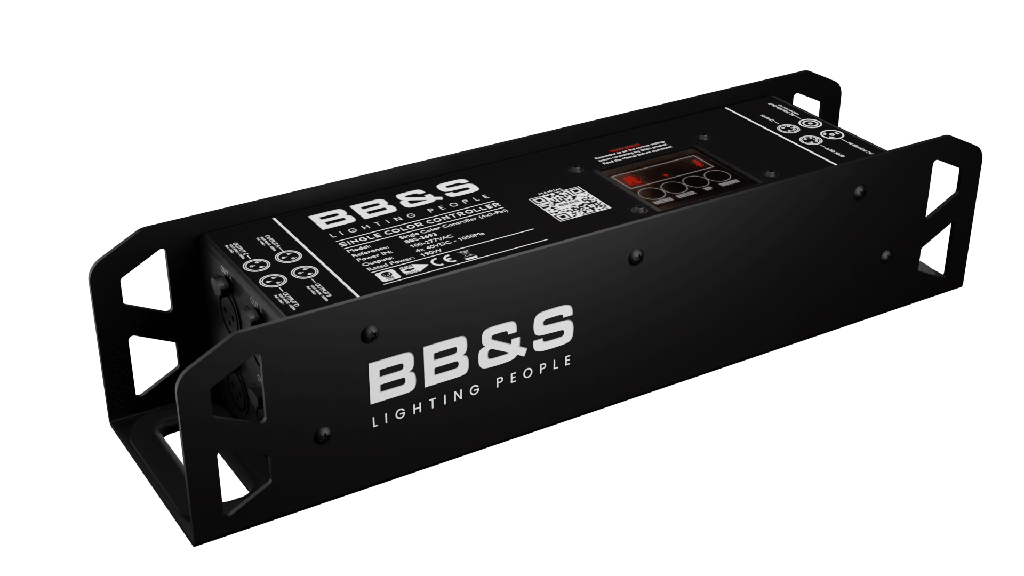

BB&S CONTROLLER 4x40W LED Driver DMX512/RDM

kr 0,00 0.0 DKK kr 0,00

kr 0,00

  • Power Cable
  • Model

Denne kombination eksistere ikke.

Kontakt os

 Scroll Down








BI-Color Controller




Single Color Controller

New BB&S Controllers


Two new BB&S Controllers replace the original BB&S 4-Way Controller. To accommodate the growing BB&S Bi-Color lineup, the new controller are available in a dedicated Bi-Color(2x 4-Pin) Configuration as well as the original Single Color(4x 3-Pin) version. This obsoletes the use of split cables and streamlines the look of installations.

The updated enclosure allows us to provide an all-in-one solution with the PSU mounted inside the Controller, perfect for studio installations.

BB&S Controllers are completely flicker-free and can be used for high-speed recording when used with BB&S fixtures.


BB&S Single Color Controller

For use with BB&S Single Color Luminaires

4x 3-Pin XLR (Single Channel)

For use with 4 Single Color BB&S Fixtures

Build-in PSU

Power Con True1 Power Cable Included

DMX512/RDM

DMX 512 with Remote Device Management

BB&S Single Color Luminairs

BB&S Pipeline Raw
Pipeline Raw 1-Foot - 4pcs

Pipeline Raw 2-Foot - 4pcs

Pipeline Raw 3-Foot - 4pcs
Pipeline Raw 4-Foot - 4pcs
Pipeline Raw 1-Foot 4-Bank - 4pcs
Pipeline Raw 2-Foot 2-Bank - 4pcs


BB&S Reflect Single Color
Reflect Single Color 1-Foot - 4pcs

Reflect Single Color 2-Foot - 4pcs

Reflect Single Color 3-Foot - 4pcs
Reflect Single Color 4-Foot - 4pcs

Reflect Single Color 1-Foot 4-Bank - 4pcs
Reflect Single Color 2-Foot 4-Bank - 2pcs
Reflect Single Color 2-Foot 2-Bank - 4pcs
Reflect Single Color 4-Foot 2-Bank - 2pcs



BB&S Compact Beams

Compact Beamlight Single-Color - 4pcs

Compact Fresnel Light Single-Color - 4pcs

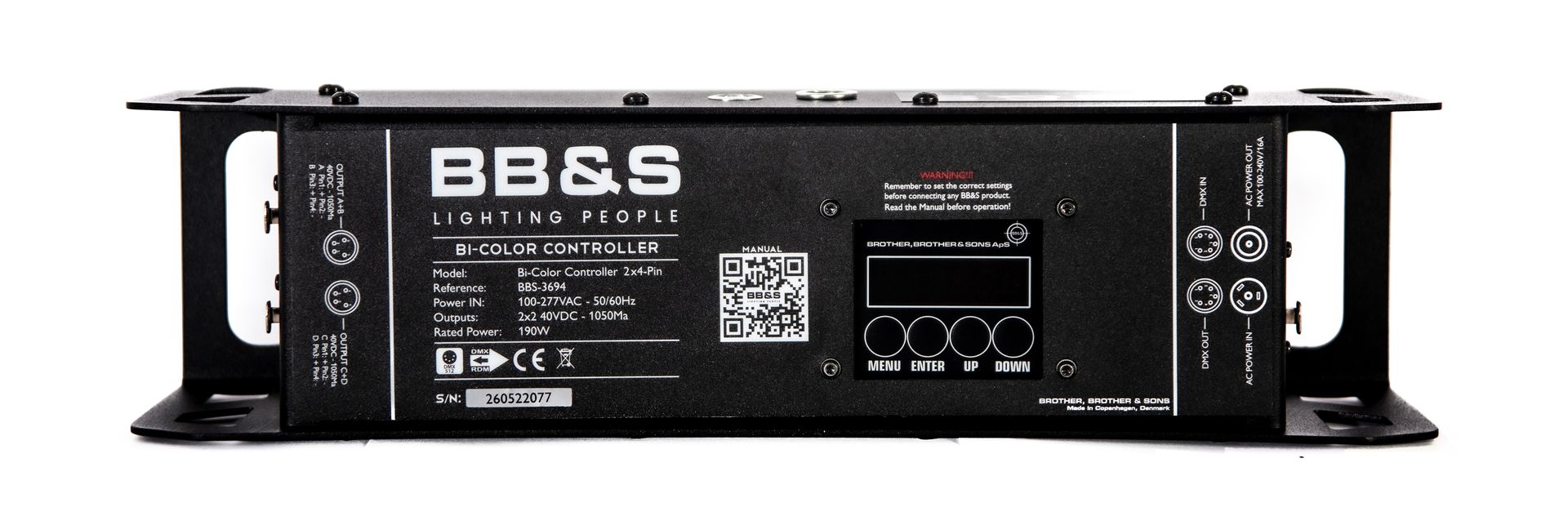

BB&S BI-Color Controller

For use with BB&S Bi-Color Luminaires

2x 4-Pin XLR (Dual Channel)

For use with 2 Bi-Color BB&S Fixtures

Build-in PSU

Power Con True1 Power Cable Included

DMX512/RDM

DMX 512 with Remote Device Management

BB&S Bi-Color Luminairs

BB&S Reflect Bi-Color
Reflect Bi-Color 2-Foot  -  2pcs

Reflect Bi-Color 4-Foot  -  2pcs

Reflect Bi-Color 2-Foot 2-Bank  -  2pcs

Reflect Bi-Color 4-Foot 2-Bank  -  1pcs

BB&S Compact Beams

Compact Beamlight Bi-Color - 2pcs

Compact Fresnel Light  Bi-Color - 2pcs




Control Modes

Individual Mode

The individual mode controls each Channel on individual DMX Channels
Note! Do not use with Bi-Color Fixtures

CCT Mode

The CCT Mode let you "tweak" between 3200K & 5600K  using multiple fixed Single Color Luminaires E.g. 2x5600K  & 2x3200K Pipelines
Note! Do not use with Bi-Color Fixtures




All Mode

The All mode controls all channels on one DMX Channel

Note! Do not use with Bi-Color Fixtures.

Bi-Color Mode

An optimized mode for the BB&S Bi-Color range. Tweak from 2700K to 5600K with either 8-Bit or 16-Bit Dimming.


Order Codes



BB&S Single Color Controller

  • BB&S Controller EU (Model: Single Color (4x3-Pin) Power Cable: Shuko) #3693EU



  • BB&S Controller US (Model: Single Color (4x3-Pin) Power Cable: US)
     #3693US



BB&S Bi-Color Controller

  • BB&S Controller EU (Model: Bi-Color (2x4-Pin) Power Cable: Shuko)
     #3694EU



  • BB&S Controller US (Model: Bi-Color (2x4-Pin) Power Cable: US)
     #3694US
